Automatic Flow Wrap Machine | Horizontal Flow Wrapping Machine | Pillow Pack Machine | BLENZOR

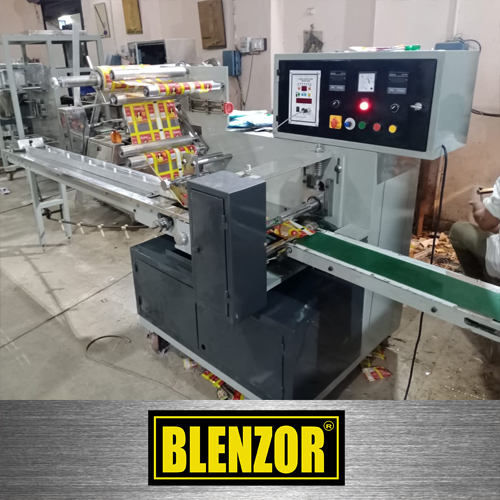

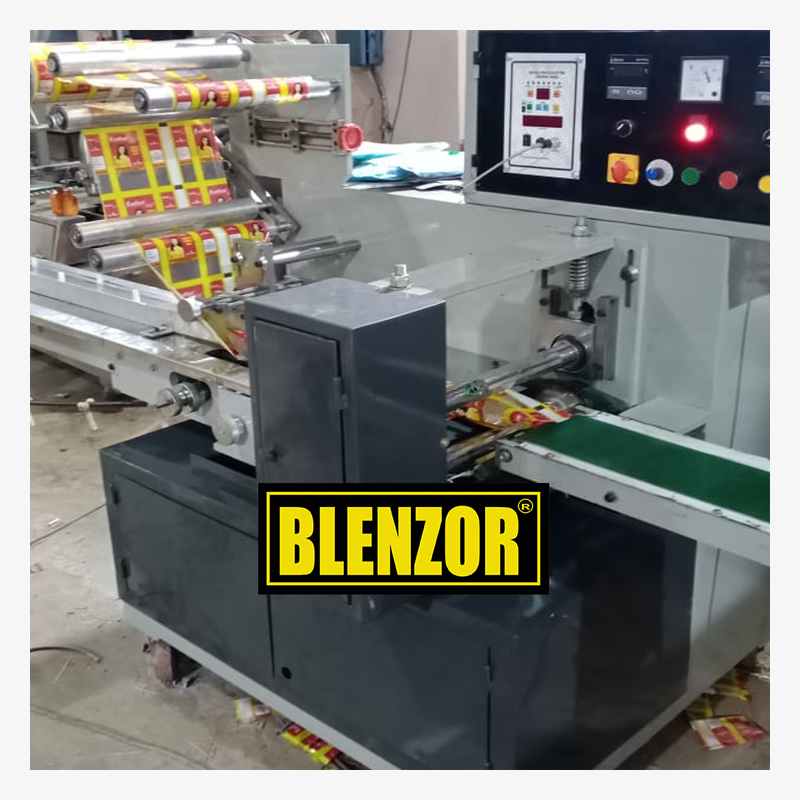

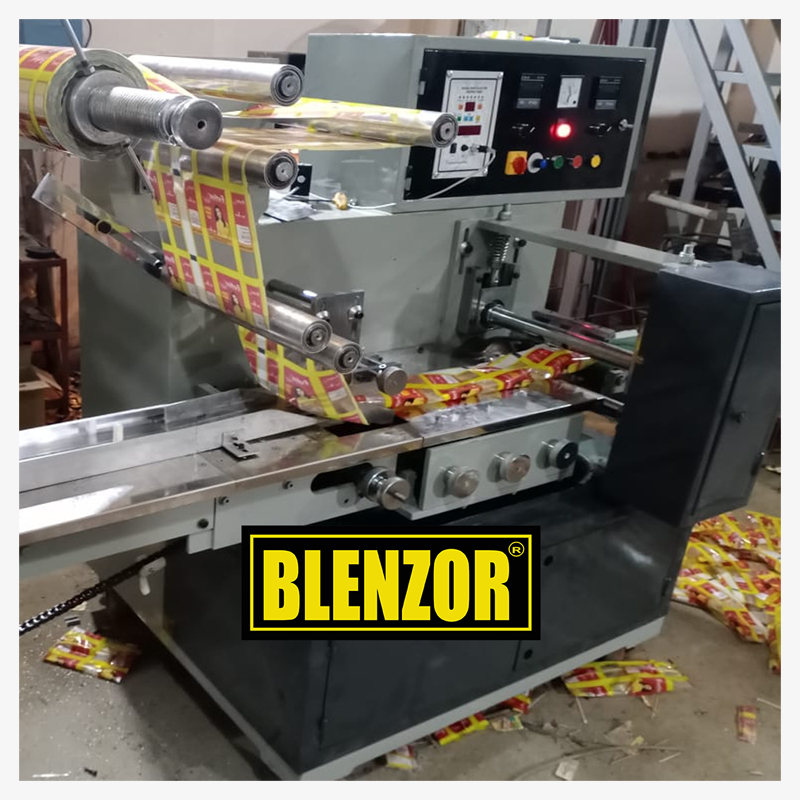

The BLENZOR Automatic Flow Wrap Machine (Model FWM-30) is a high-speed horizontal packaging machine designed for continuous wrapping of solid products in center seal pillow pouches. Engineered for industrial production, the machine delivers reliable, hygienic and attractive packaging for food, pharmaceutical, cosmetic, consumer and industrial products.
The machine is equipped with a stepper motor drive, twin film roll holder with roll-out sensor, automatic product feeding conveyor and intelligent photo sensor for accurate print mark tracking. It is capable of handling a wide range of product sizes with quick changeover, making it an ideal packaging solution for manufacturers producing multiple products.
Built with stainless steel contact parts and a heavy-duty powder-coated structure, the machine offers long service life, low maintenance and excellent packaging consistency.
Product Video
Product Description
Machine Type: Automatic Horizontal Flow Wrap Machine
Packaging Style: Pillow Pack / Center Seal
Suitable Product Size: Up to 300 mm Length × 200 mm Width
Sealing Type: Center Seal
Motor Drive: High Precision Stepper Motor
Film Roll Holder: Twin Roll Holder with Roll-Out Sensor
Product Stacker Capacity: 5–20 Pieces
Conveyor Length: 3000 mm
Photo Sensor: I-Mark Print Registration Sensor
End Sealing System: Mechanical Rotary Sealer
Maximum Film Roll Width: 600 mm
Product Contact Parts: Stainless Steel
Machine Structure: Heavy Duty MS Powder Coated
Non-Contact Covers: SS304 Stainless Steel
Power Supply: 220V, 50Hz
Connected Load: 3 KW
Machine Weight: Approx. 400 Kg
Packing Dimensions: 3000 × 800 × 1500 mm
Production Capacity: Up to 40 Packs Per Minute
Technical APPLICATION
The machine is suitable for packing:
Biscuits
Cookies
Bread
Cakes
Chocolates
Candies
Instant Noodles
Moon Cakes
Soap Bars
Cosmetics
Pharmaceutical Products
Medical Devices
Electrical Components
Hardware Products
Toys
Plastic Articles
Stationery
Kitchenware
Trays and Box-Loaded Products
FMCG Products
Machine Features
Fully Automatic Horizontal Flow Wrapping System
High-Speed Pillow Pack Packaging
Accurate I-Mark Registration Sensor
Twin Film Roll Holder with Automatic Roll Monitoring
Stepper Motor Driven Film Feeding
Adjustable Pack Length Without Gear Change
Center Seal with Strong End Sealing

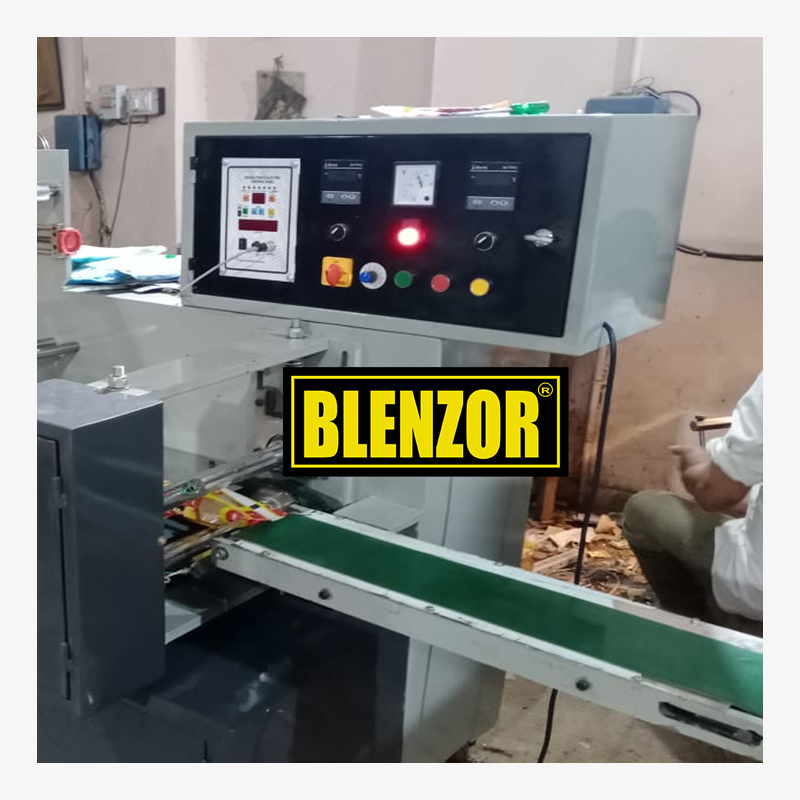

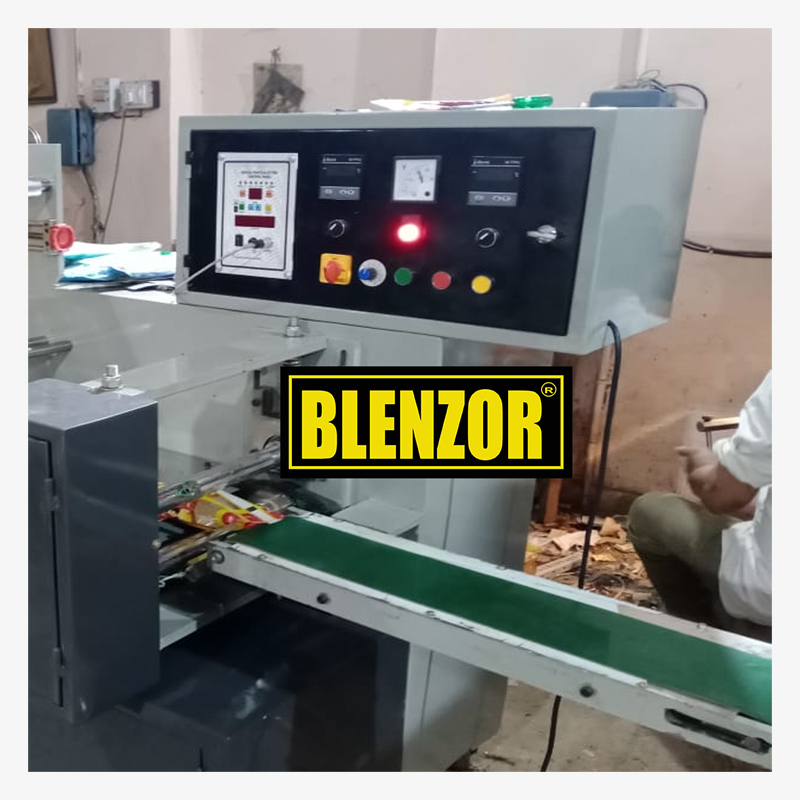

User-Friendly Digital Control Panel
Heavy Duty Industrial Conveyor
Easy Product Size Changeover
Low Film Wastage
Smooth and Stable Operation
Compact Machine Design
Low Maintenance
Suitable for Continuous Industrial Production
Working Principle
Products are automatically fed onto the infeed conveyor and spaced accurately before entering the wrapping section. Packaging film is formed around the product to create a pillow pack, while the longitudinal center seal and rotary end seals are completed simultaneously. The finished packs are discharged automatically, delivering attractive, airtight and consistent packaging suitable for retail display and transportation.
Advantages
High Production Efficiency
Attractive Pillow Pack Packaging
Accurate Film Registration
Minimal Product Damage
Reduced Packaging Material Waste
Suitable for Multiple Product Sizes
Fast Product Changeover
Easy Cleaning and Maintenance
Reliable Performance for 24×7 Production
Industries Served
Food Processing Industry
Bakery Industry
Biscuit Manufacturers
Chocolate & Confectionery Industry
Pharmaceutical Industry
Cosmetic Industry
FMCG Industry
Hardware Industry
Electronics Industry
Toy Manufacturers
Household Product Manufacturers
Contract Packaging Companies
Why Choose BLENZOR?
BLENZOR manufactures advanced flow wrapping and packaging machines designed for high-speed production, precision sealing and long-term reliability. Our machines are supplied with installation support, operator training, readily available spare parts and dependable after-sales service across India and international markets.
