Automatic Engine Lube Oil Filling Machine | Lubricant Oil Filling Line | Motor Oil Filling Machine | BLENZOR

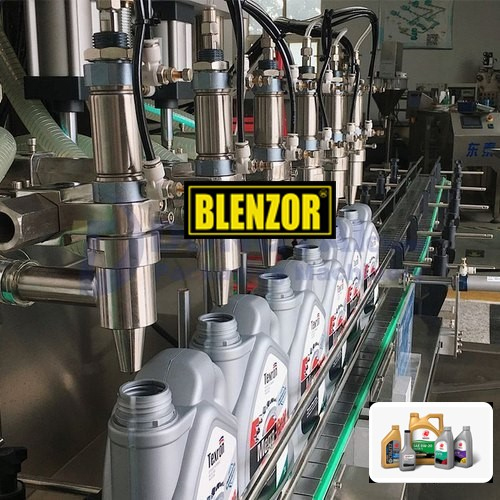

The BLENZOR Automatic Engine Lube Oil Filling Machine (Model LOF-6000) is a fully automatic filling, capping, induction sealing and labeling solution designed for engine oil, lubricant oil, hydraulic oil, brake oil, gear oil and other industrial oils. The machine is equipped with a 6 Head Digital Flow Meter Filling System, ensuring high filling accuracy, minimal product wastage and consistent performance in continuous production environments.
Designed for filling HDPE cans, plastic bottles and jerry cans from 500 ml to 5 litres, the line integrates automatic bottle indexing, online cap feeding, induction sealing and optional front & back sticker labeling. Its heavy-duty stainless steel construction, PLC-HMI control system and pneumatic bottle stopping mechanism make it ideal for modern lubricant manufacturing plants.
BLENZOR supplies lubricant filling machinery worldwide with complete installation support, operator training and dependable after-sales service.
Product Video
Product Description
Model: LOF-6000
Machine Type: Automatic Engine Lube Oil Filling & Packing Line
Filling Technology: 6 Head Digital Flow Meter Filling System
Filling Range: 500 ml – 5 Litres
Suitable Containers: Plastic Bottles, HDPE Cans, Jerry Cans
Filling Heads: 6 Nos.
Production Capacity: Up to 2,000 Containers Per Hour
Capping System: Automatic Online Capping with Cap Feeder
Sealing System: Online Induction Cap Sealer
Labeling System: Automatic Front & Back Sticker Labeler (Optional)
Conveyor Length: 8 Metres
Conveyor Drive: 0.5 HP Gear Motors × 3 Nos.
PLC & HMI: Delta Touch Screen Control System
Bottle Stopper: Pneumatic Container Positioning Mechanism
Product Contact Parts: Stainless Steel 304
Machine Covers: Stainless Steel
Power Supply: 220V, 50Hz
Connected Load: 6 KW
Machine Weight: Approx. 1200 Kg
Machine Dimensions: 8000 × 850 × 1800 mm
Technical Application
Suitable for filling:
Engine Oil
Lubricating Oil
Motor Oil
Gear Oil
Brake Fluid
Hydraulic Oil
Transmission Oil
Industrial Lubricants
Compressor Oil
Cutting Oil
Automotive Fluids
Industrial Chemical Oils
Machine Features
Fully Automatic Lubricant Filling Line
6 Head High Accuracy Digital Flow Meter Filling
PLC & Touch Screen HMI Control
Automatic Bottle Indexing System
Online Automatic Cap Feeding & Capping
Online Induction Foil Sealing
Optional Front & Back Sticker Labeling
Pneumatic Bottle Stopping Mechanism
Recipe Storage for Multiple Container Sizes
Quick Product Changeover
Heavy Duty Industrial Conveyor
Low Maintenance Design
High Filling Accuracy with Minimal Wastage
Suitable for Continuous 24×7 Industrial Production
Working Principle
Empty bottles or jerry cans are automatically conveyed to the filling station where the pneumatic bottle stopper positions each container accurately. The 6 digital flow meter filling heads dispense the preset quantity of lubricant with exceptional precision. Filled containers then move automatically to the cap feeding and capping station, followed by induction foil sealing. An optional automatic labeling machine applies front and back labels before the finished containers are discharged for packing and dispatch.
Advantages
High-Speed Automatic Filling
Excellent Filling Accuracy
Suitable for Multiple Container Sizes
Low Product Wastage
Fast Changeover Between Products
PLC Controlled Operation
User-Friendly Touch Screen Interface
Rugged Industrial Construction
Easy Maintenance
Long Service Life
Industries Served
Lubricant Manufacturers
Engine Oil Plants
Automotive Oil Manufacturers
Petroleum Companies
Chemical Industries
Industrial Oil Packers
Contract Filling Companies
Automotive Aftermarket Suppliers
OEM Lubricant Manufacturers
Export-Oriented Packaging Plants
Why Choose BLENZOR?
BLENZOR manufactures high-performance lubricant and engine oil filling machines designed for precision, reliability and maximum production efficiency. Our complete filling lines are trusted by manufacturers across India, UAE, Saudi Arabia, Oman, Kuwait, Qatar, Egypt, Kenya, Nigeria, South Africa, USA, UK, Germany, France, Canada and Australia. We provide installation, operator training, spare parts support and comprehensive after-sales service worldwide.
