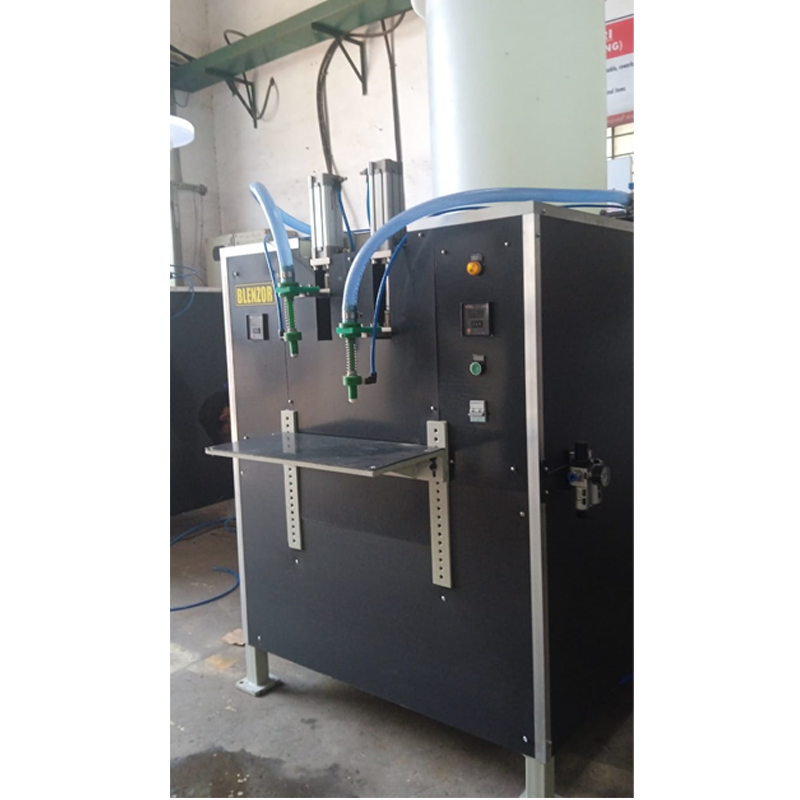

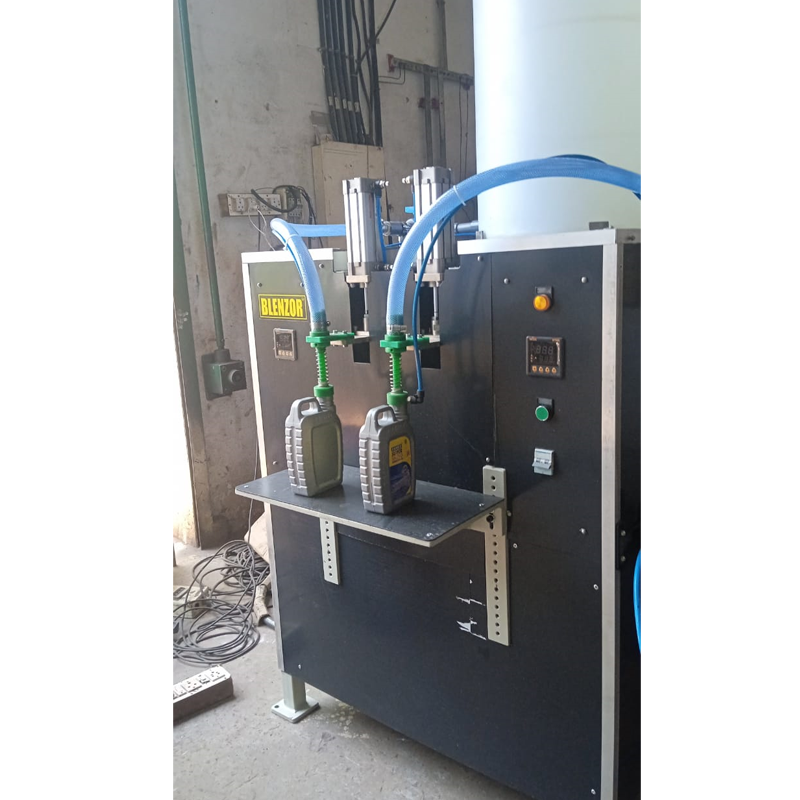

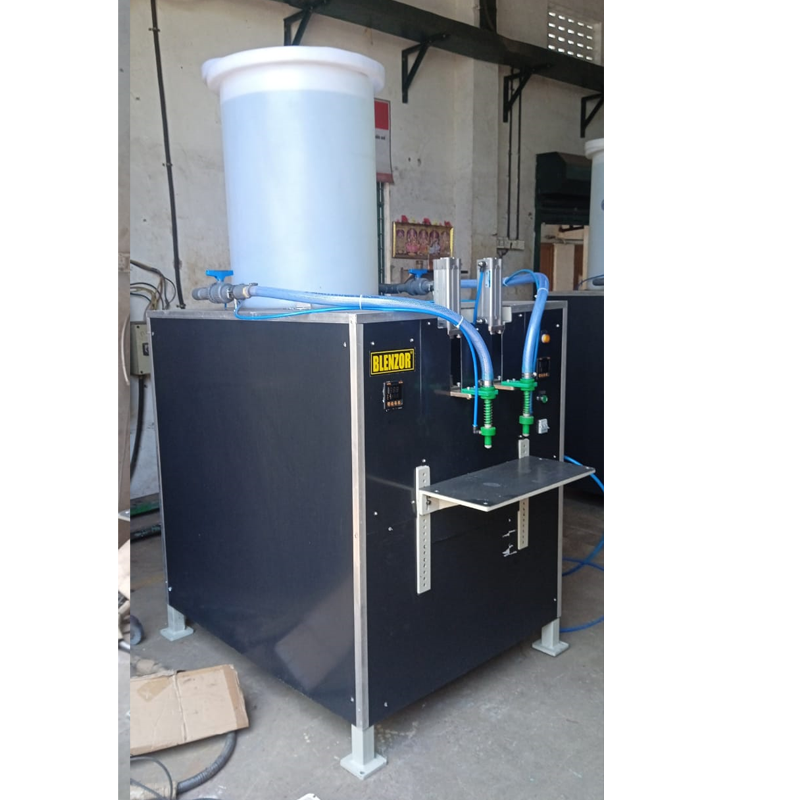

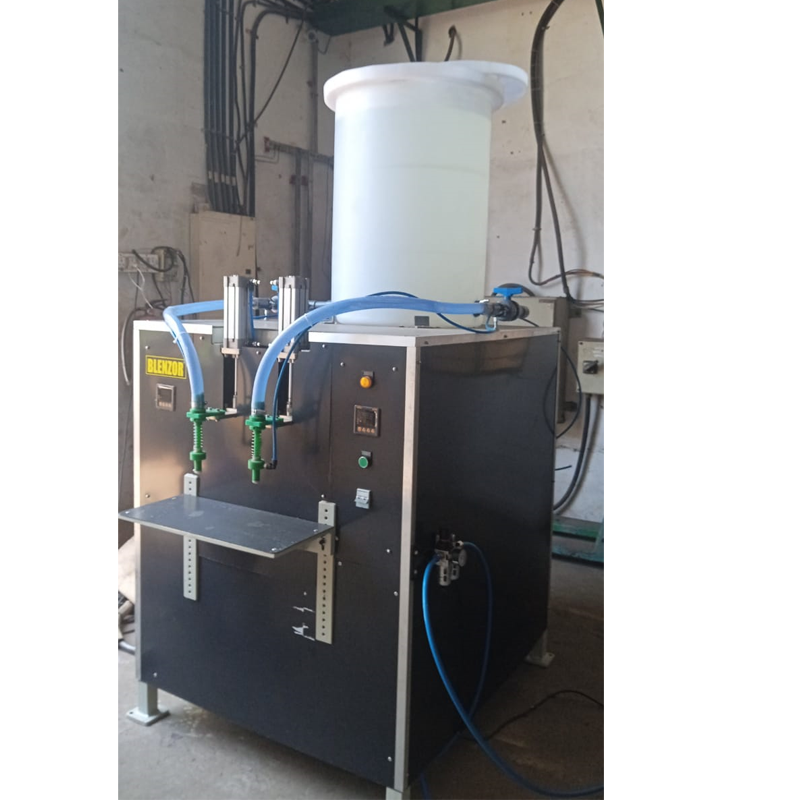

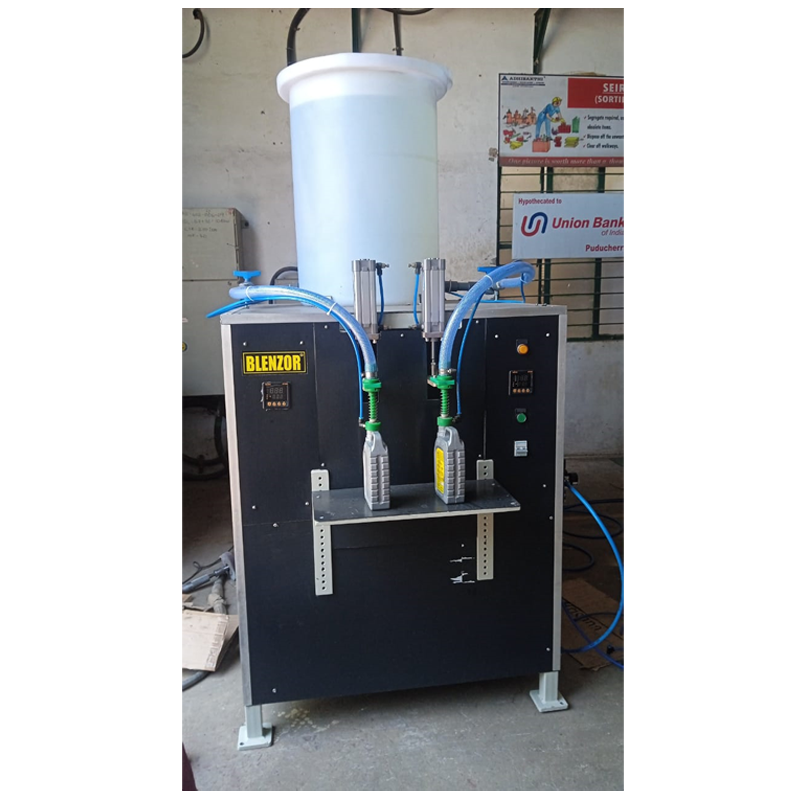

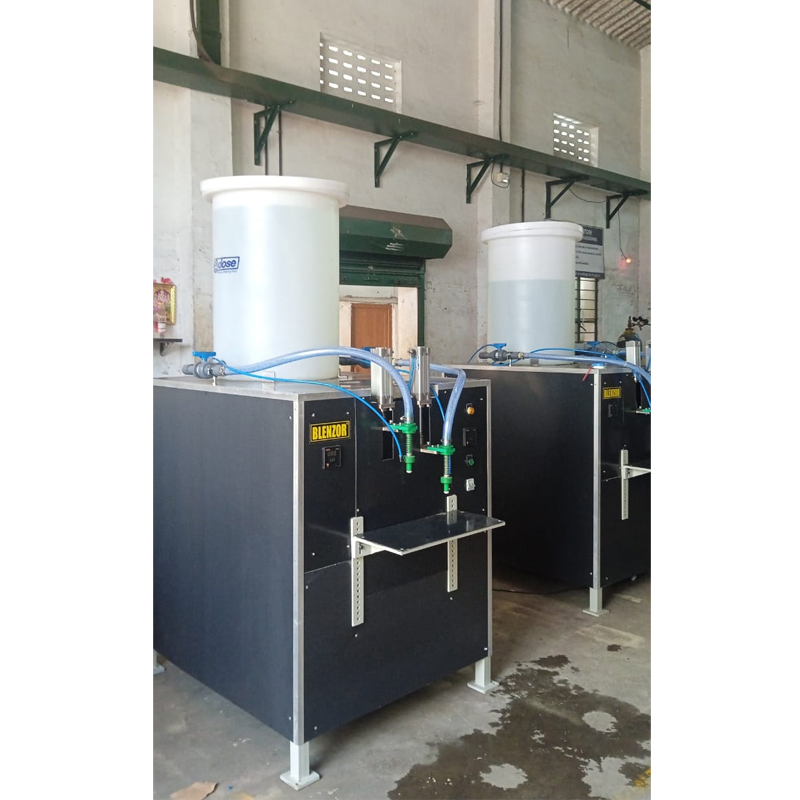

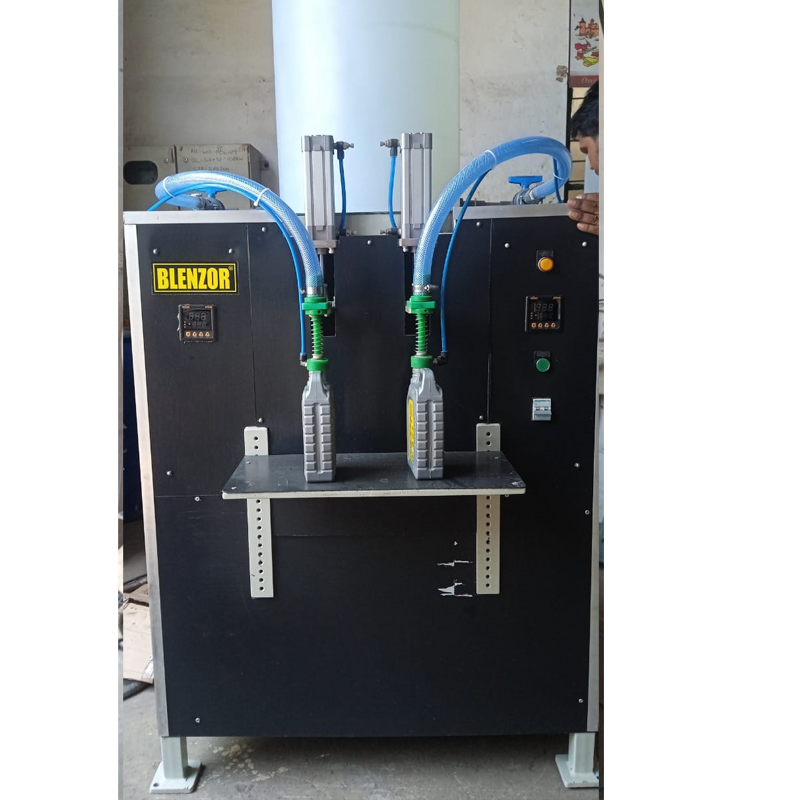

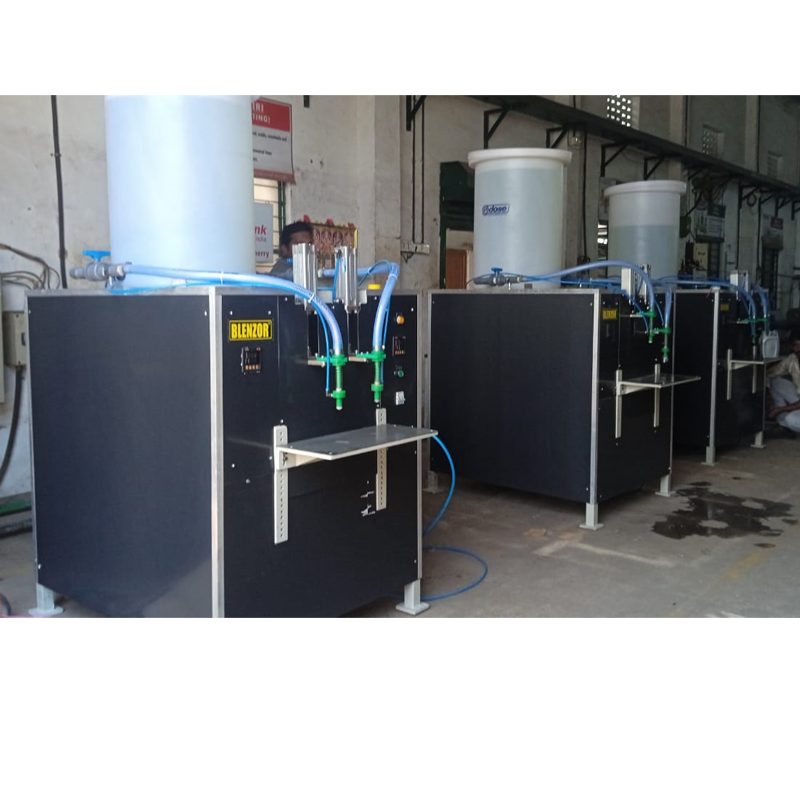

Automatic 2 Head Acid Filling Machine
BLENZOR's Automatic 2 Head Acid Filling Machine is engineered for the safe and accurate filling of corrosive liquids including sulphuric acid, hydrochloric acid (HCL), nitric acid, phosphoric acid, battery acid, industrial chemicals, solvents and cleaning chemicals.
Manufactured using PTFE-lined wetted parts, corrosion-resistant nozzles and a heavy-duty industrial frame, the machine offers reliable operation in aggressive chemical environments while minimizing product loss and operator exposure.
Designed for chemical manufacturers, battery plants and industrial liquid packaging facilities, the machine combines filling accuracy, chemical resistance and long service life.
Product Video
Technical Specifications
Model No.: AFM-2H
Filling Range: 100 ml – 5 Litres
Number of Filling Heads: 2
Output: 8–12 Bottles Per Minute
Accuracy: ±0.5%
Filling System: Pneumatic Piston Filling
Nozzles: PTFE Anti-Drip
Product Contact Parts: PTFE / Teflon
Machine Frame: Heavy Duty Chemical Resistant Construction
Power Supply: 220V Single Phase
Air Requirement: 4–6 Bar Dry Air
Operation: Semi Automatic / Automatic (Optional)
Container Type: Bottle / Jerry Can / Can / HDPE Container / Chemical Drum (Optional)
Standard Features
PTFE lined filling system
Anti-drip nozzles
Splash-free filling
High filling accuracy
Chemical resistant construction
Fast product changeover
Easy maintenance
Operator friendly controls
Long service life
Industrial duty design
Emergency stop
Optional safety enclosure
Suitable Products
Sulphuric Acid
Hydrochloric Acid
Nitric Acid
Phosphoric Acid
Battery Acid
Cleaning Chemicals
Industrial Chemicals
Corrosive Liquids
Liquid Fertilizers
Acid Based Solutions
Chemical Solvents
Industries Served
Chemical Plants
Battery Manufacturers
Water Treatment Plants
Agrochemical Industry
Fertilizer Plants
Industrial Cleaning Chemical Manufacturers
Laboratories
Chemical Export Companies
Why Choose BLENZOR?
Over 20 years of packaging machinery experience
Machines supplied worldwide
Industrial-grade construction
Customization available
Fast spare parts support
Installation assistance
Technical support
Reliable after-sales service
Export Markets
BLENZOR exports Acid Filling Machines to customers across Asia, Africa, Europe, the Middle East, North America, South America and Australia, including UAE, Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Egypt, South Africa, Kenya, Nigeria, Germany, France, Italy, Spain, United Kingdom, Canada, USA, Australia, New Zealand and many other countries.
Frequently Asked Questions
Can the machine fill concentrated acids?
Yes. PTFE-lined contact parts are suitable for most corrosive liquids. Material compatibility should always be verified for the specific chemical.
Can different bottle sizes be used?
Yes. The machine can be adjusted for multiple container sizes.
Is the filling volume adjustable?
Yes. Filling volume can be adjusted between 100 ml and 5 litres.
Can this machine be integrated into a complete filling line?
Yes. It can be integrated with bottle conveyors, capping machines and labeling machines.
Is a fully automatic model available?
Yes. BLENZOR also manufactures fully automatic acid filling systems with conveyorized operation.
